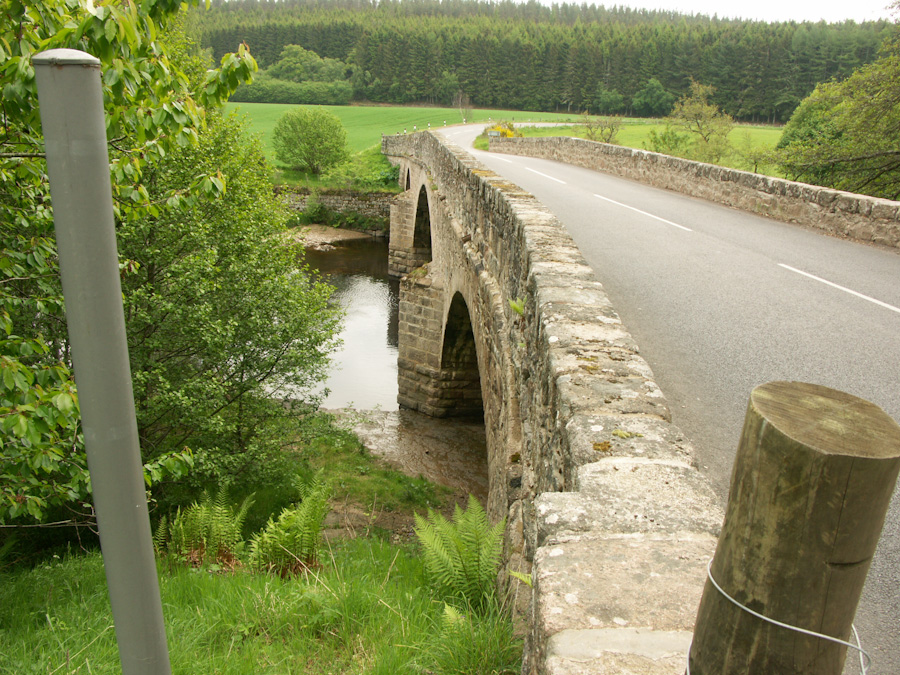

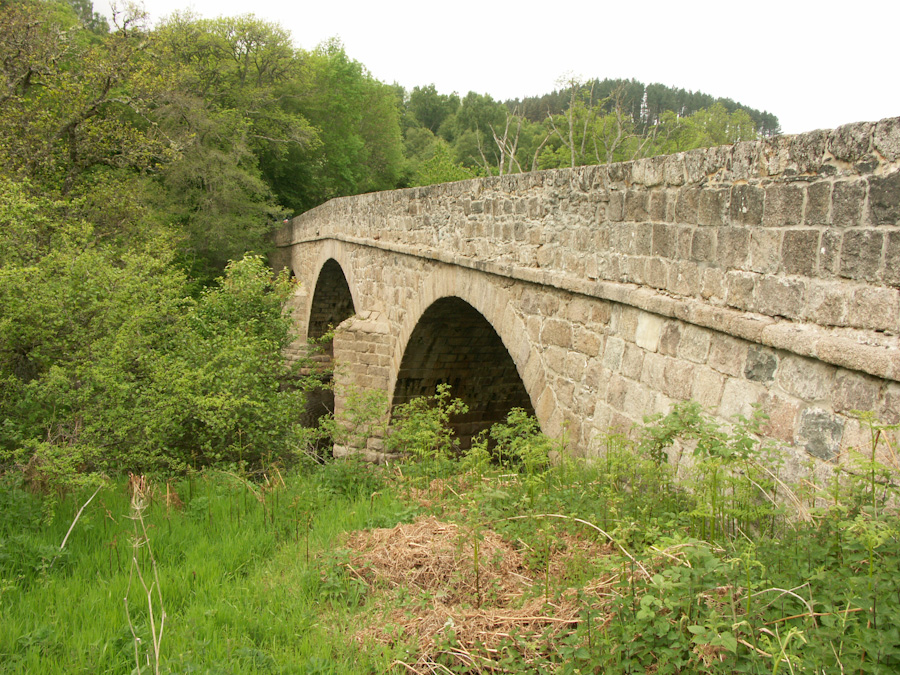

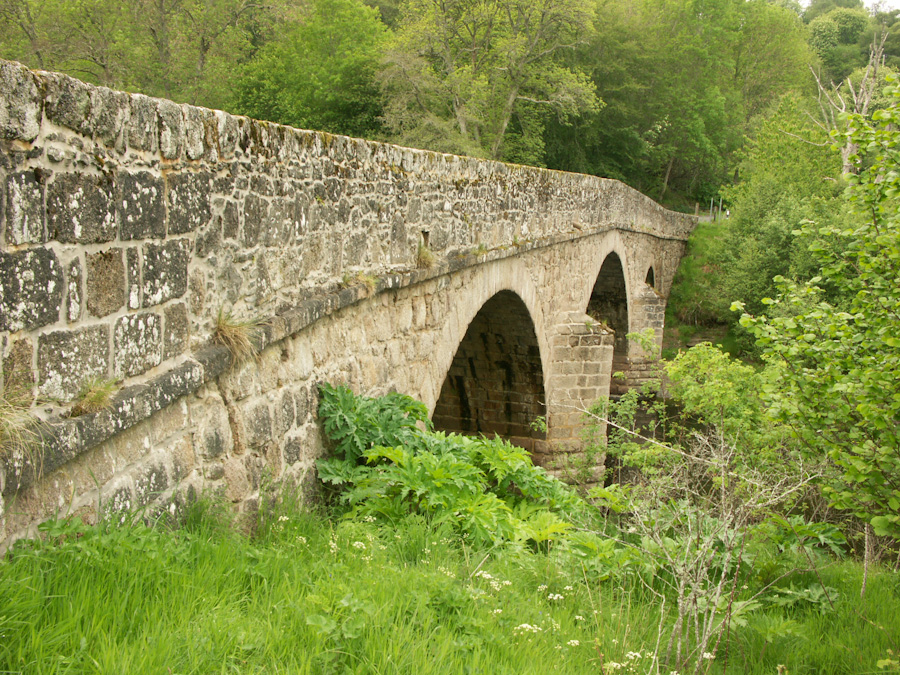

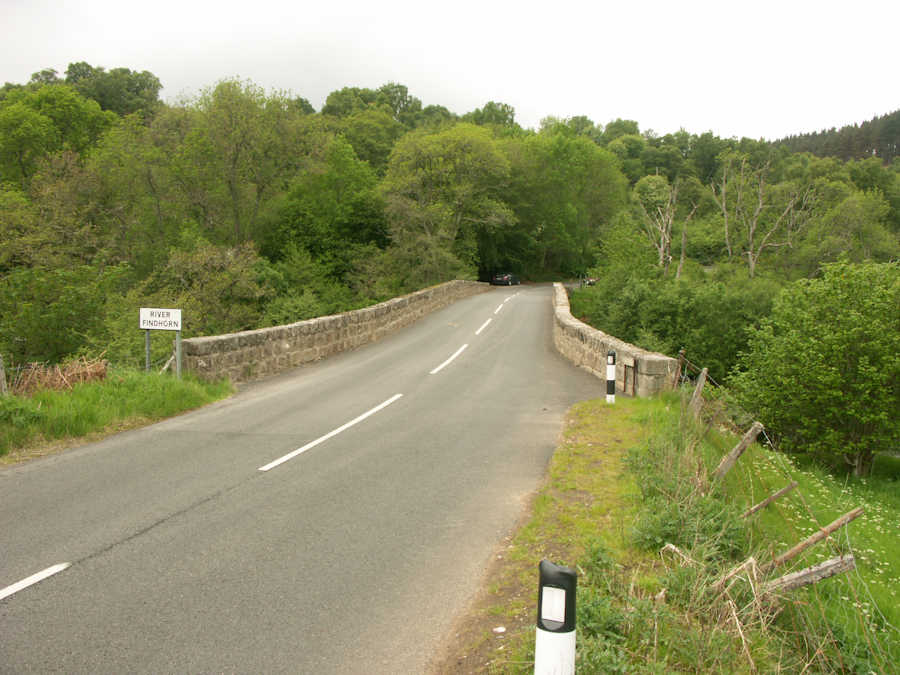

Logie Bridge, Ferness, over River Findhorn

Ferness Bridge; River Nairn; Bridge; River Findhorn

Logie Bridge, Ferness, over River Findhorn
Logie Bridge, Ferness, over River Findhorn
Logie Bridge, Ferness, over River Findhorn
Logie Bridge, Ferness, over River Findhorn
1814 - 17
Thomas Telford
11 + 17 + 9 m
road
Findhorn
arch
coursed rubble
NH 9596 4622
Comments :

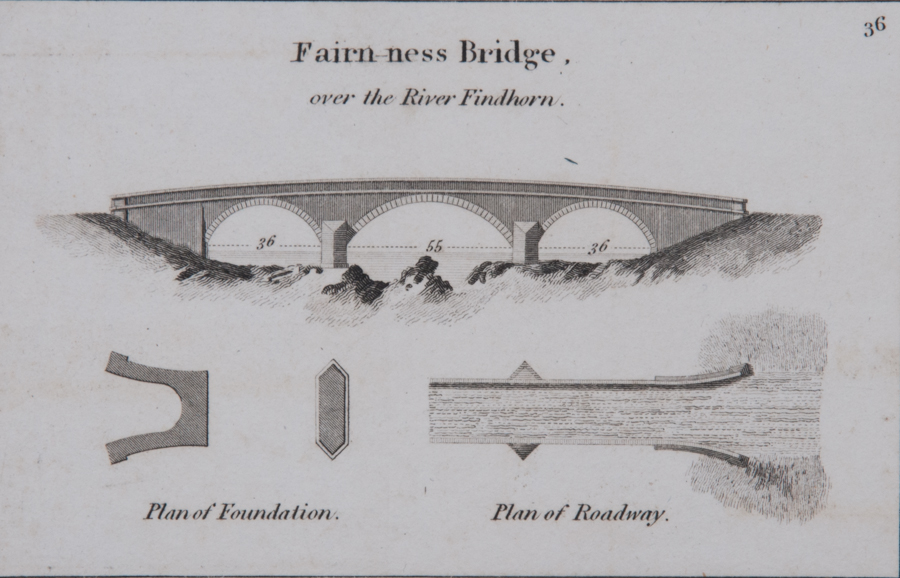

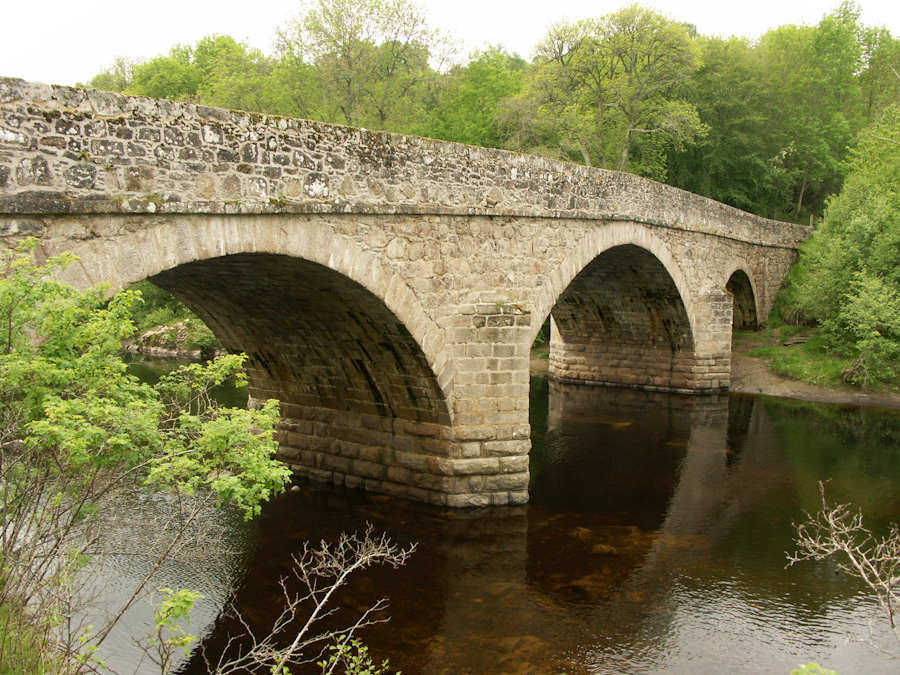

It is a neat, sturdy, compact rubble bridge with three spans and triangular cutwaters built still. If you can get down beside the river you will see the central span is not only the largest but also the shallowest. The south side arch, springing from the same level on the pier is forced into a steeper curve. Telford built the spandrel walls hollow, with cross-ways strengthening bars, and, by thus reducing the weight, he was able to have narrower piers. [1]
