Allt Ratagan Bridge

rochaid Undalain Bridge

Allt Ratagan Bridge

Allt Ratagan Bridge

Allt Ratagan Bridge

Allt Ratagan Bridge

Allt Ratagan Bridge

Allt Ratagan Bridge

Year built :

ca. 1815

Designer/builder :

Thomas Telford

Length :

4,2 m

Current use :

bypassed

Over :

Allt Ratagan

Type :

arch

Material :

rubble

Grid Reference.:

NG 9163 1940

Comments :

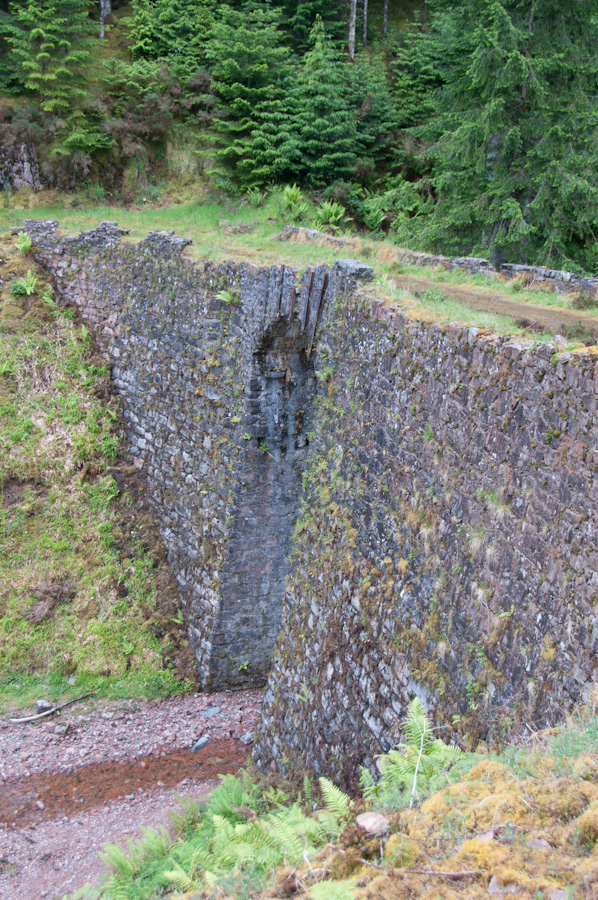

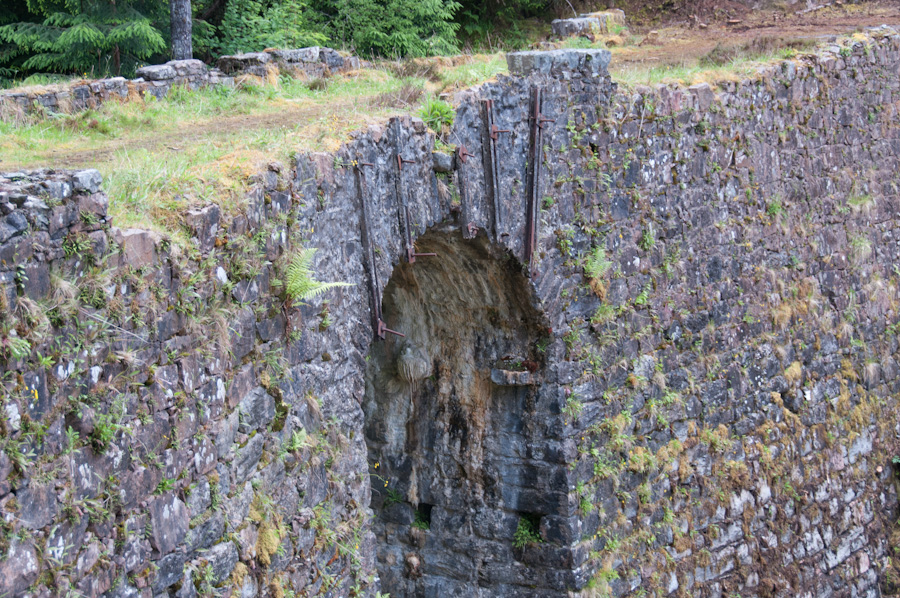

The bridge measures about 40 metres in length and between 8 metres and 5 metres in width over a parapet measuring between 0.5m and 0.6m in width. At its highest point the bridge stands at 13 metres. At some point a crude repair has been carried out to the arch which is supported with five iron brace fixtures. [HER] Width min. between parapets is 4,2 m.

Historic
